5 Things To Know About Roll Forming

Written by Jack Pennuto | July 14, 2014

What is roll forming and why do I need it?

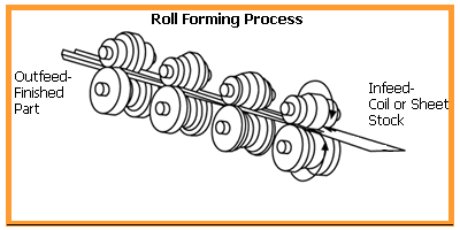

Fundamentally roll forming is defined as a continuous, high-volume, fabricating process in which a desired shape is formed from a flat strip of metal by passing it through a series of matching pairs of contoured rolls. Only bending occurs in the roll process and does not change the thickness of the metal except for a slight thinning at a bend radius. Roll forming is a continuous process that is extremely economical and efficient particularly when the job requires shaping sections into extended lengths at high volume. The advantages of roll forming are widely recognized and include:

  • Processing over 500 feet per minute
  • Consistently formed material
  • Maintaining extremely finite tolerance range

In today’s competitive marketplace, it is necessary to have robust equipment that consistently delivers quality product in a consistent pattern. In addition to sheet leveling units, other forms of roll forming technology include parts leveling, cut to length lines, slitting, embossing, stitching as well as custom-designed process lines.

What are the types of roll materials?

Rolls are generally made from tool steel, the grade being dependent on the expected production and finish of the piece. For routine applications where a smooth finish strip is to be formed or when shapes are formed from hot rolled, unpickled steel, a High Chrome-High Carbon tool steel (AISI D-2) with about 1.5% carbon and 12% chrome is suggested. Tool steel has exceptional wear performance and for the average run of light gauge cold formed sections can be expected to roll several million feet or more before regrinding. Typically 4 to 5 regrinds can be made before the rolls are scrapped.

For specific industry and product applications, other roll materials may be used.

  • Chrome coated alloy steel can be used for light gauge, pre-painted or galvanized units typically found in the building and metal roofing industry
  • Aluminum bronze / AISI H 13 Tool Steel can be used for roll tooling environments that require non-magnetic or temperature sensitive specifics often found with inline welding or heat treating
  • Tungsten carbide tooling provides improved durability and is often used for applications requiring extremely high speed and wear performance capabilities such as with tube mills

What is the expected machine life?

A regular maintenance and replacement program significantly improves the life cycle of a roll machine. Cost of repair is negligible even in a very old machine so long as it is not being misused or abused.  In recent years the obsolescence factor has been greatly reduced - as machines have been constantly improved in accuracy, accessibility, ease of adjustment and wearing performance, the basic design has not significantly changed.

Roll Forming Capabilities

As an engineering method, roll forming is typically used for projects that require a mass production of shapes that exhibit a uniform cross-section. Roll forming utilizes any type of material that is capable of withstanding bending to the specified radius. Common types of material included in this process are galvanized steel, tin, copper as well as painted or plastic coated metal. This application can either involve a cold rolled or hot rolled process, a mill finish or high polished/mirror finish. Roll forming techniques can successfully produce items such as:

  • an 18" diameter butt seam tube, while simultaneously filling it with a flux to create a welding rod
  • computer components from .005" thick tin plate
  • structural sections and pipe from ¾" thick plate
  • pipe as large as 48" diameter

Depending upon the type of metal section being processed, many times multiple units can be produced from a single strip or concurrently with several strips that are combined, resulting in one composite section.

What is the production / operation advantage?

With today’s electrical controls and computer technology, it is possible and necessary to integrate the roll former operation with a material requirements planning (MRP) system to schedule when and how much product is roll formed. Lengths, quantities, and perforation patterns can be directed from incoming orders and routed to the roll forming machine controls, with the inclusion of product specific labeling or inkjet marking to identify the product coming off the roll former to the order for which it was made. This type of integration can be added to existing roll former installations with a simple control upgrade or scheduled for future capital purchases. A necessary hardware and software infrastructure must be established to manipulate incoming orders to a data format that can be processed and transmitted to the roll formers production queue.
