Air Presses and Their Impact on Roll Forming System Operations and Design - Part 1

July 29, 2025 | by Formtek

With the rapid advancement of manufacturing technology, the selection of presses and measuring systems for roll forming has become more varied and complex than ever. There are three major types of presses that roll forming professionals should know about: mechanical, air, and hydraulic presses.

By understanding the differences between them, you can make more informed equipment decisions that enhance your roll forming system's operations and design. Each type of press has unique advantages and disadvantages, and selecting the right one requires careful consideration of your application's specific needs and constraints.

In this series on our blog, we'll go through each press type one by one and discuss their features, advantages, and disadvantages and how all those elements make them the right choice for certain applications. Next up, we'll cover the basics of air presses.

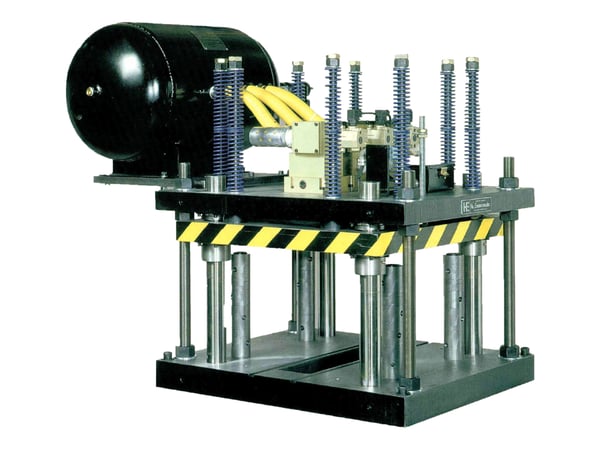

Air Presses - Part 1Catalog-Image-Hill-Engineering-HAP-Series-Standard-Air-Presses-4x3-1

Introduction to Air Presses for Roll Forming

In roll forming systems, air presses (also known as pneumatic presses) are commonly used for light-duty tasks that require precision and speed, such as punching, notching, or shearing thinner gauge materials. Their fast cycling times and adjustable force output make them ideal for high-volume production environments where flexibility and consistency are critical.

Air presses are especially beneficial in applications where minimal impact force is needed to maintain the structural integrity of delicate profiles. Additionally, their compact design and lower maintenance requirements make them an efficient and cost-effective choice for integrating into automated roll forming lines.

Air presses offer greater control and flexibility, making them suitable for applications requiring precise adjustments. While they may come with higher initial costs, the long-term benefits of reduced maintenance and operational versatility can outweigh the upfront investment. Typically, air presses are the most economical presses for the type of tonnage available.

Why to Use Air Presses in Roll Forming

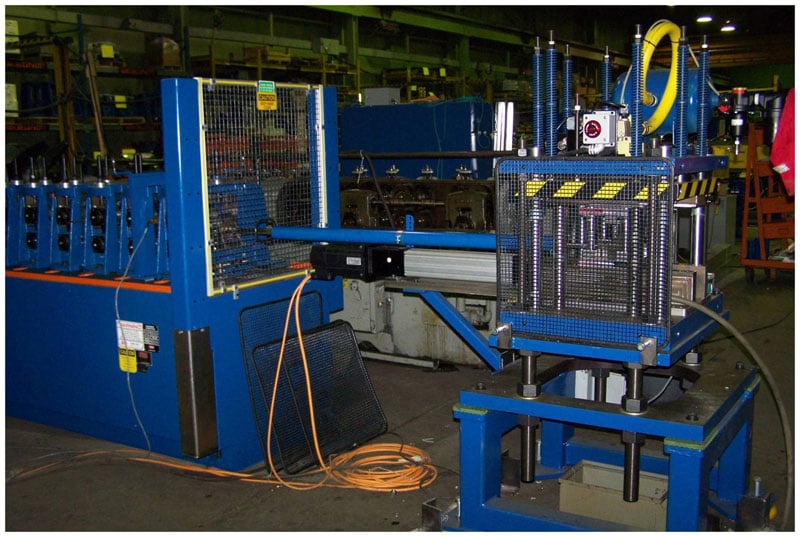

Air presses are used in roll forming for their speed, precision, and versatility, especially in applications involving lighter gauge materials. They offer fast cycle times, easy force adjustment, and are well-suited for tasks like punching, notching, or shearing without disrupting the continuous nature of the roll forming process. Additionally, air presses are typically more compact, cost-effective, and require less maintenance than hydraulic or mechanical alternatives, making them ideal for high-volume production lines where efficiency and flexibility are key.roll-former-with-air-press

How Do Air Presses for Roll Forming Work?

Air presses utilize compressed air to generate mechanical force for various industrial tasks such as punching, stamping, and assembly. By directing high-pressure air into a cylinder, these presses convert pneumatic energy into precise and consistent force, making them ideal for applications requiring accuracy and control.

Working Principle
  1. Compression: The air compressor draws in ambient air and compresses it to a high pressure.

  2. Air Flow Control: The control valve adjusts the pressure and flow of the compressed air based on the requirements of the operation.

  3. Force Generation: The compressed air enters the cylinder, pushing the piston. This movement translates into mechanical force that drives the ram.

  4. Application of Force: The ram, guided by the frame, applies the generated force to the workpiece, performing the desired operation such as cutting, forming, or joining.

  5. Return Cycle: After the operation, the control valve reverses the air flow, allowing the piston to retract and the ram to return to its original position, ready for the next cycle.

It's important to note that these are general rules to use as rough guidelines regarding air presses. However, it's crucial to remember that exceptions exist, especially if budget constraints dictate your choice of press. Be cautious of this rationale, as it might lead to higher costs in the long run.

Learn More About Air (Pneumatic) Presses >>

Tags: Roll Forming, Presses, Air Presses, Pneumatic Presses
