In this series on our blog, we'll go through each press type one by one and discuss their features, advantages, and disadvantages and how all those elements make them the right choice for certain applications. In this post, we'll discuss the first of the main types of air presses, the bladder air press, and its advantages and disadvantages.
Air Presses - Part 7

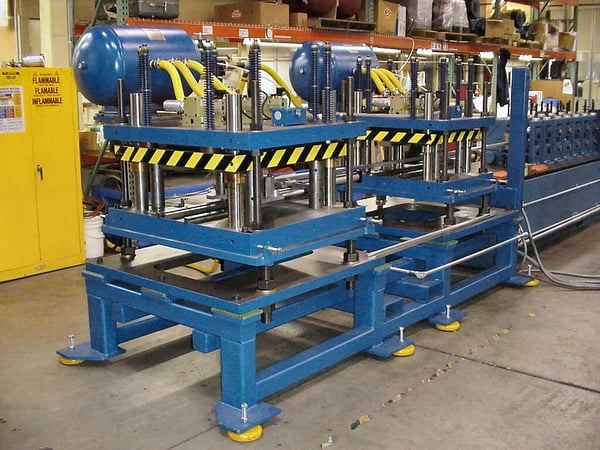

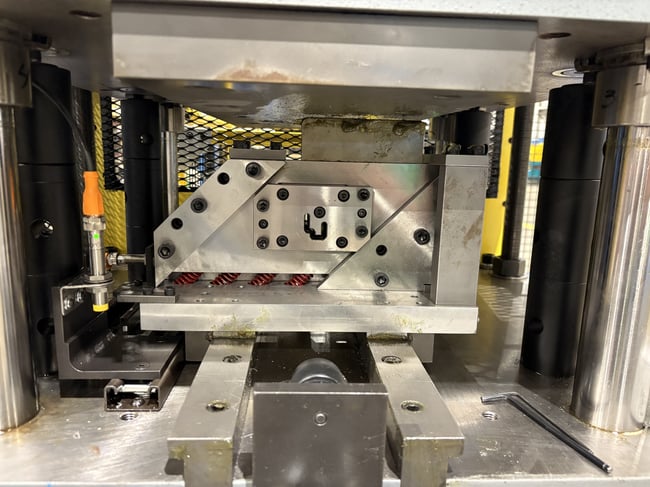

How Bladder Air Presses Work
A bladder air press for roll forming uses a flexible, air-filled bladder to apply controlled pressure to the material. This type of press is ideal for light-duty applications, offering smooth, uniform force distribution with minimal mechanical complexity. It's especially useful for delicate forming tasks or where cushioning is needed to avoid damaging the profile. The components of bladder air press operation are:
- Air Pressure: The press operates by filling a bladder or diaphragm with compressed air.
- Force Generation: As the bladder inflates, it expands and exerts pressure on a ram or platen, which then moves down to perform the pressing operation.
- Controlled Movement: The amount of force applied and the movement of the ram can be controlled by regulating the air pressure in the bladder.

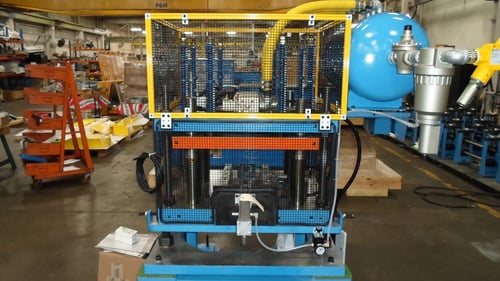

Bladder Air Press Key Characteristics in Roll Forming
- Cost-Effective: Typically, less expensive than mechanical or hydraulic presses.
- Speed: Can offer very fast, repetitive ram action, which makes it suitable for high-speed applications.
- Flexibility: The bladder can adapt to various shapes and sizes, providing versatility in different pressing tasks.
- Portability: Generally lightweight and easier to move compared to other types of presses.
- Noise and Vibration: Can generate significant noise and vibration during operation.
- Maintenance: May require more frequent maintenance due to the wear and tear on the bladder and associated components.
- Tonnage Loss: There can be a loss of tonnage or force as the bladder stretches, especially with longer stroke lengths.

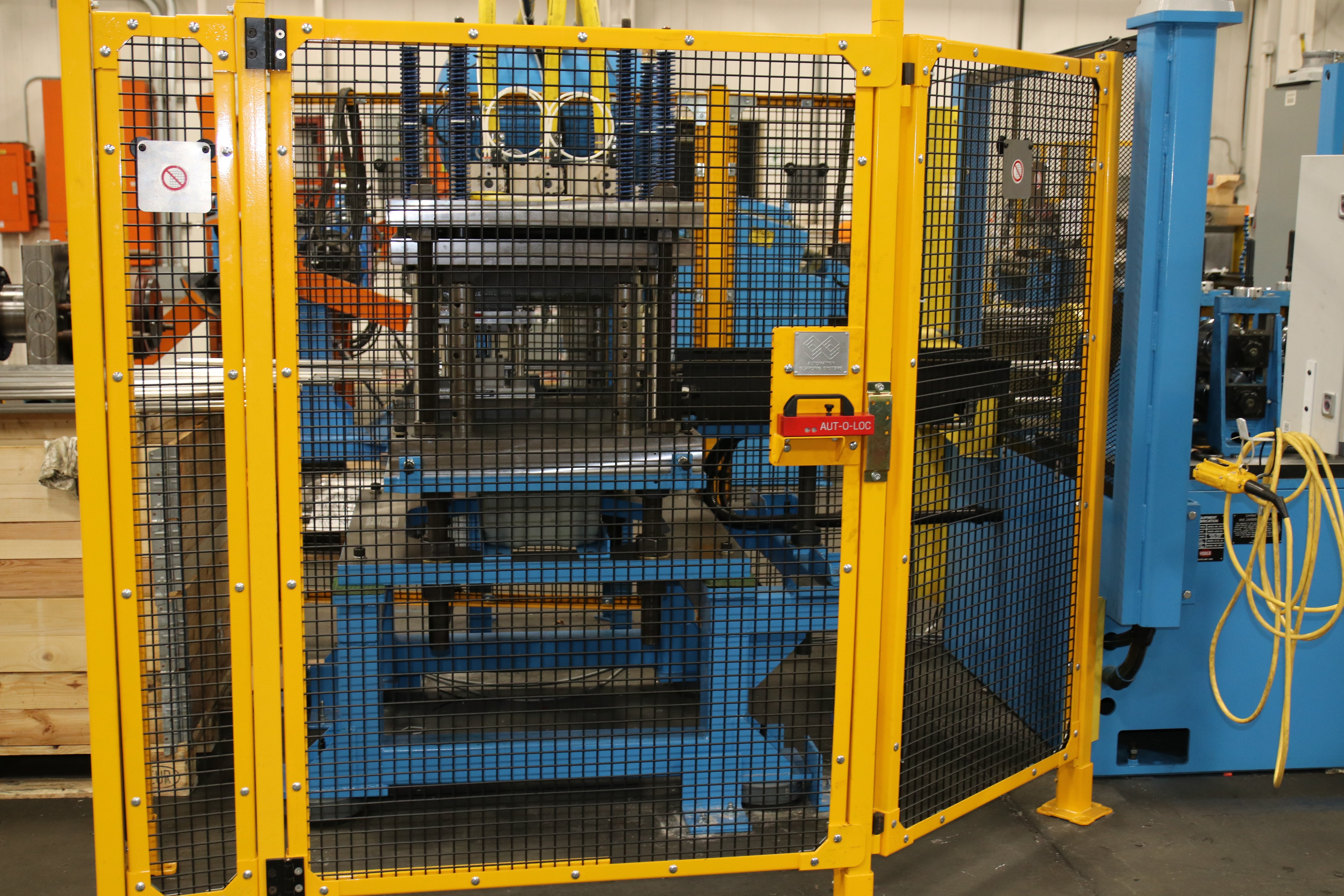

Bladder Air Press Common Applications in Roll Forming
Bladder air presses are often used in applications where speed and flexibility are crucial, such as in high-volume production environments or in situations where frequent tool changes are needed. They are also beneficial for tasks that require moderate force and precision.
- Gentle Forming: Ideal for forming delicate or thin-gauge materials where uniform pressure is required without marring the surface.
- Embossing: Used to apply consistent patterns or surface features without sharp tooling impact.
- Cushioned Punching: Helps absorb shock during light punching operations, reducing stress on the material and tooling.
- Support and Hold-Down Functions: Acts as a soft clamp to stabilize the material during secondary operations.
- Edge Forming or Crimping: Applies smooth, even pressure along edges to create consistent bends or crimps.
Advantages of Bladder Air Presses in Roll Forming
Bladder air presses are especially valued for their ability to provide smooth, controlled force in continuous, high-speed roll forming lines. Specific key advantages of bladder air presses include:
- Uniform Pressure Distribution: The flexible bladder applies even force across the workpiece, reducing the risk of distortion or damage.
- Gentle Material Handling: Ideal for thin, soft, or delicate materials that could be marred by rigid tooling.
- Shock Absorption: The bladder cushions impact, minimizing stress on both the material and machine components.
- Low Maintenance: Fewer moving parts and no hydraulic fluid make bladder systems simpler to maintain.
- Compact and Lightweight: Easy to integrate into existing roll forming lines with minimal space requirements.
- Quiet Operation: Operates more quietly than mechanical or hydraulic systems, improving the work environment.
- Cost-Effective for Light-Duty Tasks: An economical solution for high-speed, low-force forming and support operations.
Disadvantages of Bladder Air Presses in Roll Forming
Bladder air presses also possess certain drawbacks when paired with less suitable applications, including:
- Limited Force Capacity: Bladder air presses are not suitable for heavy-duty forming or punching tasks that require high tonnage.
- Slower Response Time: The flexible bladder may not cycle as quickly as rigid pneumatic or mechanical presses, reducing overall production speed in some applications.
- Durability Concerns: The bladder can wear out or become damaged over time, requiring periodic replacement.
- Lower Precision: While pressure is uniform, exact positioning and control may not match that of mechanical or hydraulic systems.
- Not Ideal for Complex Tooling: The flexible nature of the bladder limits its compatibility with intricate or multi-stage die setups.
- Air Supply Dependence: Like all pneumatic systems, consistent performance relies on a stable, high-quality compressed air source.
