In this series on our blog, we'll go through each press type one by one and discuss their features, advantages, and disadvantages and how all those elements make them the right choice for certain applications. In this post, we'll discuss the key roll forming design and system considerations to make when using mechanical presses.
Mechanical Presses - Part 7
Designing Roll Forming Systems with Mechanical Presses

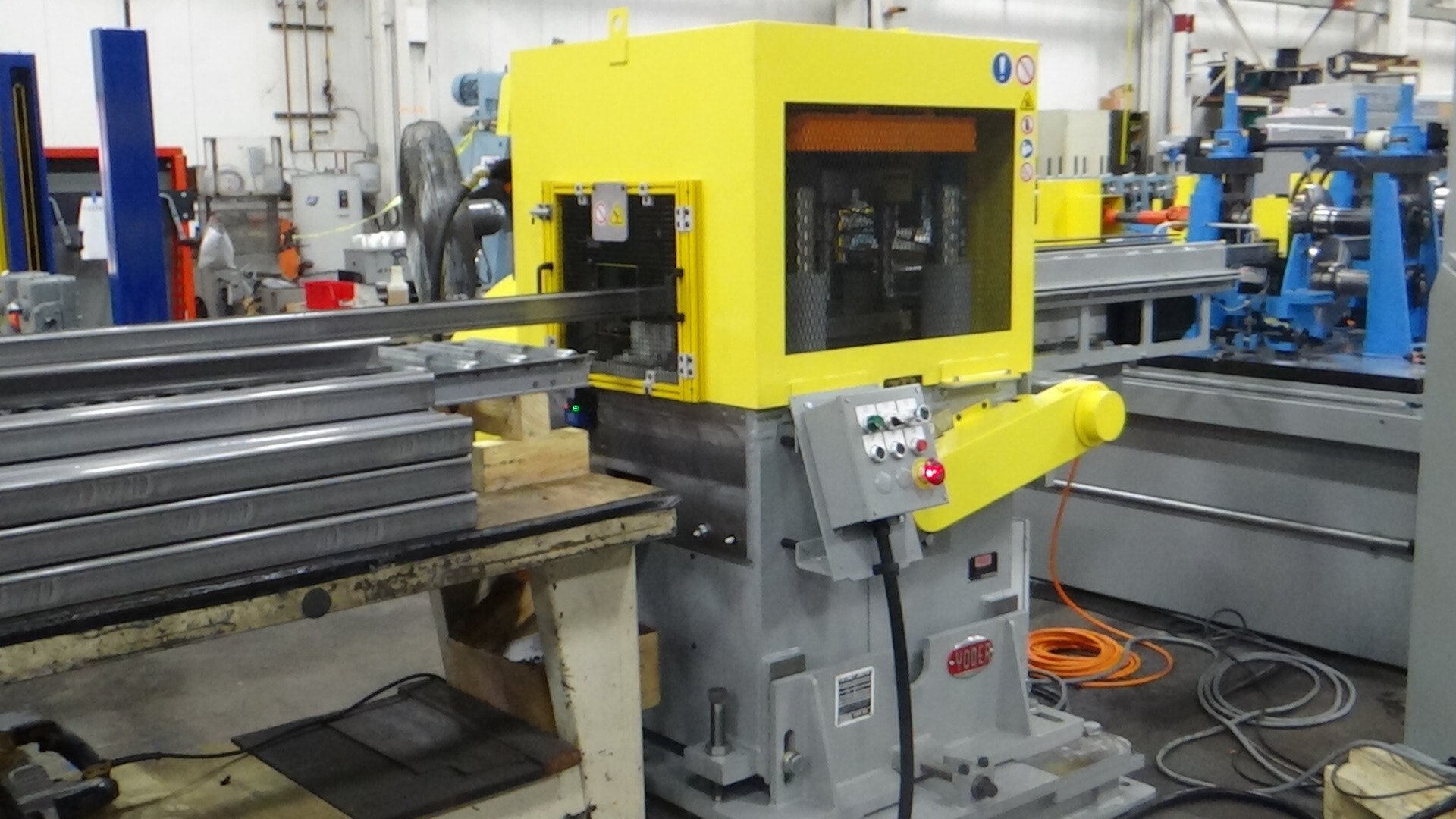

Integrating mechanical presses into roll forming systems requires thoughtful planning to ensure efficiency, precision, and compatibility with production goals. These presses are typically used for high-speed punching, notching, embossing, and cutoff operations—and when properly integrated, they enhance both productivity and product quality.
Key Considerations in System Design
1. Press Location: Pre-Punch vs. Post-Cutoff
- Pre-Punch Presses: Positioned before the strip enters the roll forming mill, used for punching features into flat material.
- Post-Cutoff Presses: Installed at the end of the line to shear parts to length or perform end-forming.
- Design must accommodate material feed rates and allow for proper part handling between the press and forming rolls.
2. Tonnage and Stroke Requirements
- Select a press with appropriate tonnage based on material thickness, type, and the complexity of the operation.
- Consider the required stroke length and shut height to ensure compatibility with tooling and material height.
3. Synchronization with Line Speed
- Mechanical presses operate at fixed stroke speeds. The roll forming line must be synchronized to ensure accurate feature placement and avoid misfeeds.
- Flywheel-driven systems are best suited for consistent, high-speed applications with repeatable press cycles.
4. Tooling Integration
- Dies used in mechanical presses must align precisely with material feed paths.
- Tooling changeovers should be considered early in the design process for flexibility and ease of maintenance.
5. Drive System Coordination
- The mechanical press flywheel and clutch system must be timed with the roll forming drive to prevent jerks, downtime, or material damage.
- In flying cutoff systems, the press is mounted on a moving carriage to match line speed during the cut.
6. System Rigidity and Vibration Control
- Mechanical presses exert significant force, so the line frame and foundation must be designed to absorb shock and maintain alignment.
- Vibration isolation and robust press mounting are crucial for maintaining accuracy and prolonging system life.
7. Safety and Accessibility
- Include guards, light curtains, and safety interlocks around press areas.
- Design for operator access during maintenance, die changes, and troubleshooting.
Benefits of Including Mechanical Presses in System Design
- Enhances in-line production capabilities by eliminating the need for secondary offline operations.
- Reduces labor costs and increases throughput by automating repetitive tasks.
- Ensures high accuracy and repeatability for features critical to product function or assembly.
